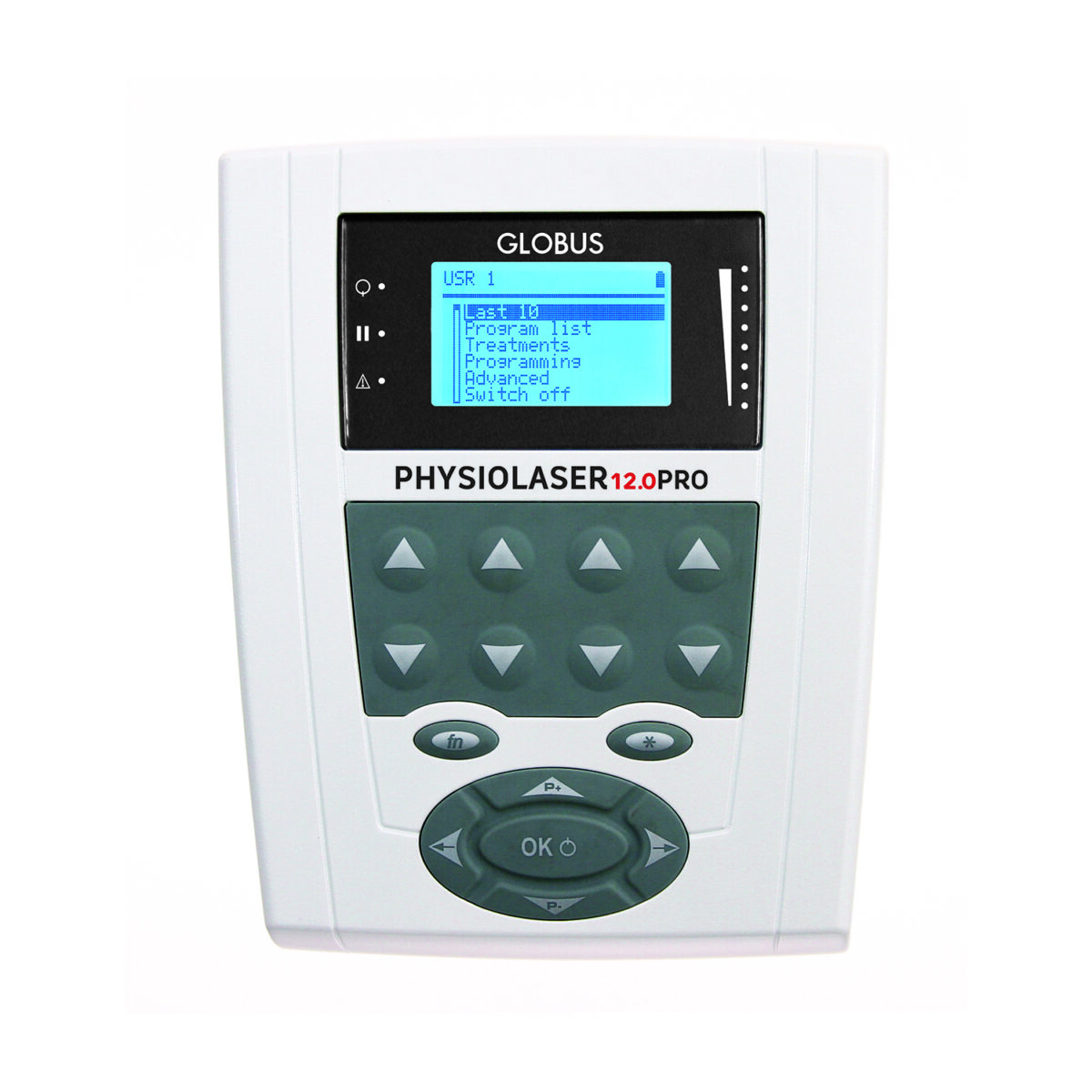

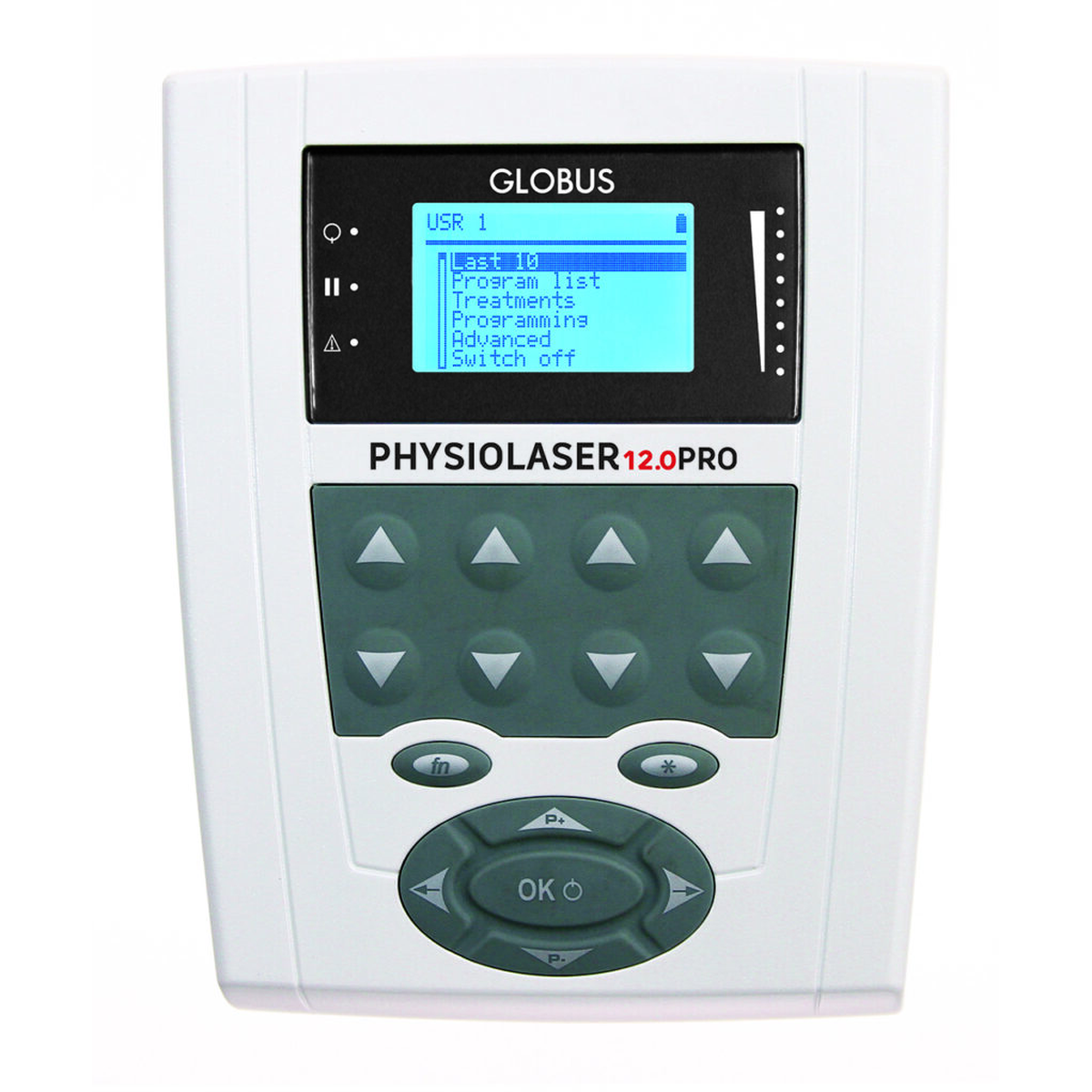

Physiolaser 12.0 Pro is described in the authorised technical PDF as a 12 W laser-therapy configuration for professionals with frequent-use and close clinical placement requirements. This original record presents the model document’s verifiable optic, power, dimension, programme-index and standard-equipment information.
Pro housing and technical operating structure
The PDF identifies a 2.6-inch backlit display, programmable menu and favourites area. The 11 mm and 22 mm optics, pulsed or continuous operation and frequency setting up to 10,000 Hz form the model’s documented technical structure. The programme index presents 808 nm and 980 nm handpiece headings in separate groups; this should be read as technical menu scope rather than treatment guidance or an outcome claim.
- 2.6-inch backlit display
- Programmable menu and favourites area
- Pulsed and continuous operation
- 11 mm and 22 mm optics
- 808 nm and 980 nm programme-index headings
- Mains and rechargeable-battery operation
Technical specification
| Display | 2.6-inch backlit |
|---|---|
| Laser source | Class 4 GaAlAs diode |
| Maximum power | 12 W ± 20% |
| Standard wavelength | 808 nm |
| Optional wavelengths | 980 nm and 1064 nm |
| Operating modes | Pulsed and continuous |
| Frequency | Up to 10,000 Hz |
| Optics | 11 mm and 22 mm |
| Power supply | Mains and rechargeable battery |
| Dimensions / weight | 220 × 170 × 60 mm / 1.12 kg |
Standard package scope
- Carrying case
- Physiolaser 12.0 Pro main unit
- 808 nm laser handpiece
- 11 mm and 22 mm optics
- Two protective glasses for patient and operator
- Emergency button
- Power-supply unit
- Operating manual
Option and safety note
The source PDF lists a 980 nm handpiece and a 1064 nm handpiece with maximum 3 W as purchase options. Use, protective glasses, safety hardware, parameter choice and delivery scope must be confirmed against the current manufacturer manual and qualified professional assessment.
